TCB45 233 2,5 - KONDENSER

Condenser · Series TİCARİ · R404A

Product catalog

High fan speed
64.9 kW
Fan
6 × Ø450
Length
1,960 mm

Product code 182See all

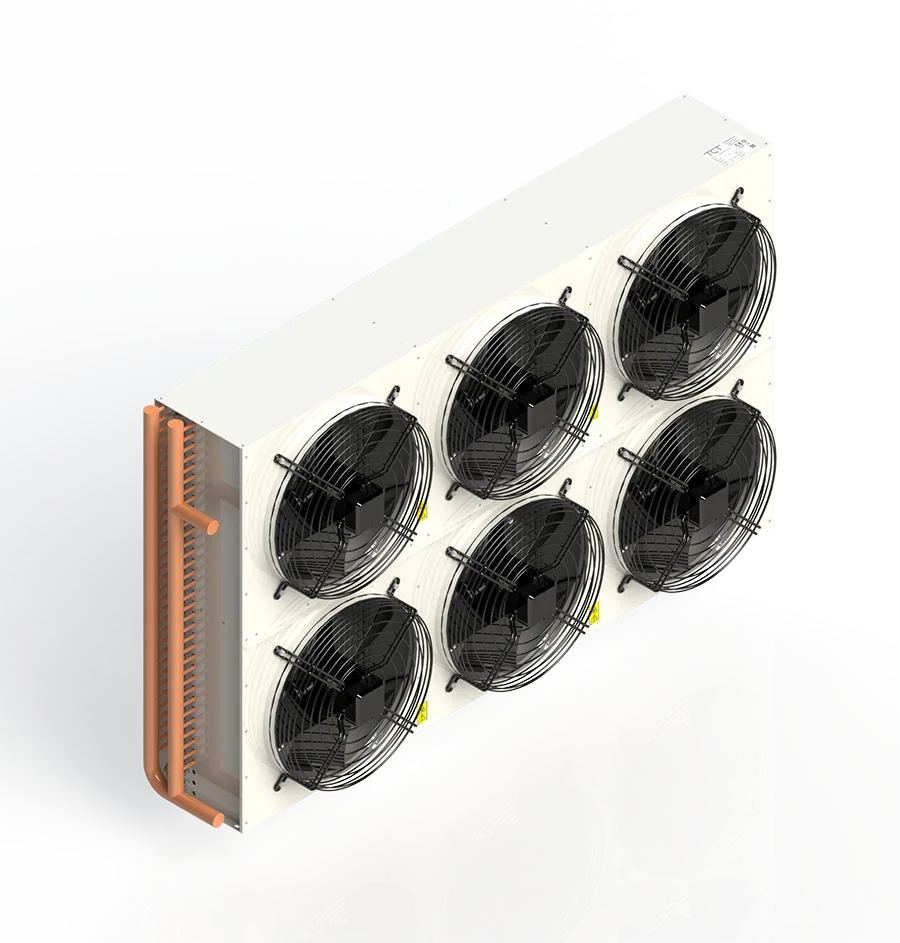

TCB45 233 2,5 - KONDENSER – Product
Capacity
High fan speed 64.9 kW
Low fan speed 45.7 kW
Product code
182
Series
TİCARİ
Refrigerant
R404A
Fan
6 × Ø450 mm · 1,400 rpm
Airflow
26,325 m³/h
Heat transfer surface
148.44 m²
Fin spacing
2.5 mm
Air inlet temperature
25 °C
Condensing temperature
40 °C
Pipe connections
1 5/8" – 1 3/8"
Dimensions (L × W × H)
1,960 × 420 × 1,300 mm
Request a quote for this model

The quote button opens the contact form filled in with this model.

Models with similar capacity

See all

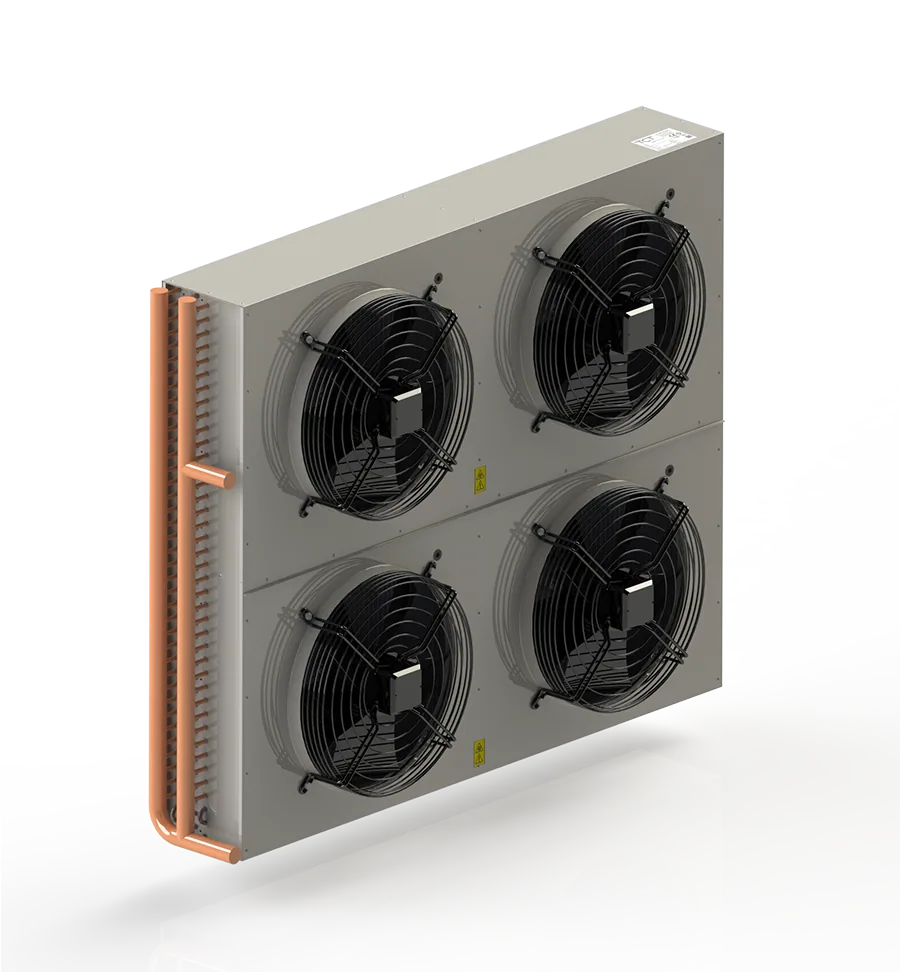

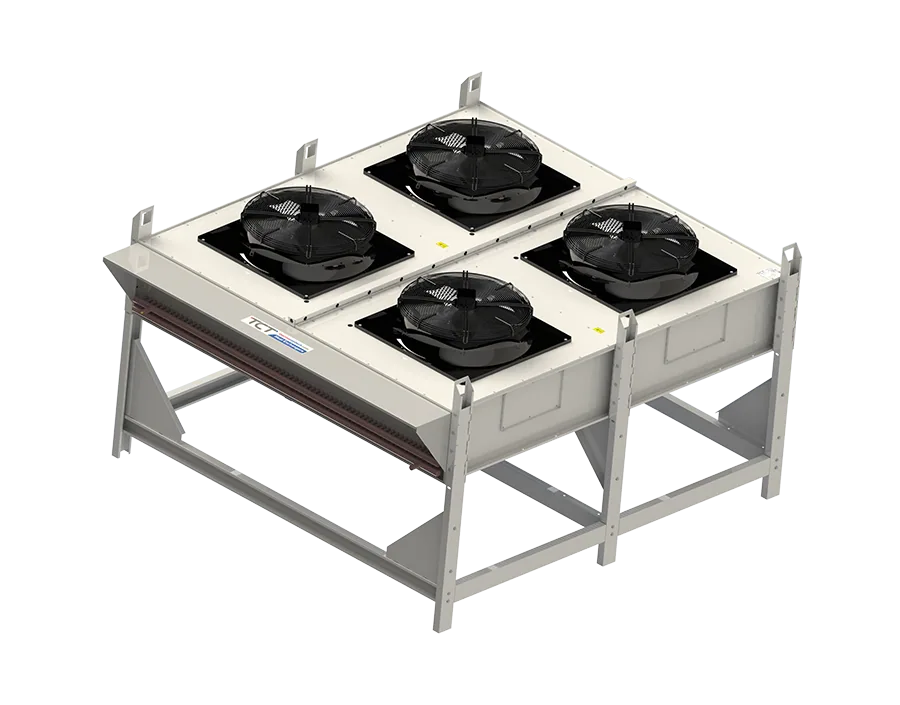

TCB50 224 2,1 - KONDENSERTCB50 224 2,1 - KONDENSER64.4 kW · 4 × Ø500TUB50 134 2,1 - KONDENSERTUB50 134 2,1 - KONDENSER63 kW · 3 × Ø500TUB63 123 2,5 - KONDENSERTUB63 123 2,5 - KONDENSER62.7 kW · 2 × Ø630TUB50 223 2,5 - KONDENSERTUB50 223 2,5 - KONDENSER68.3 kW · 4 × Ø500
