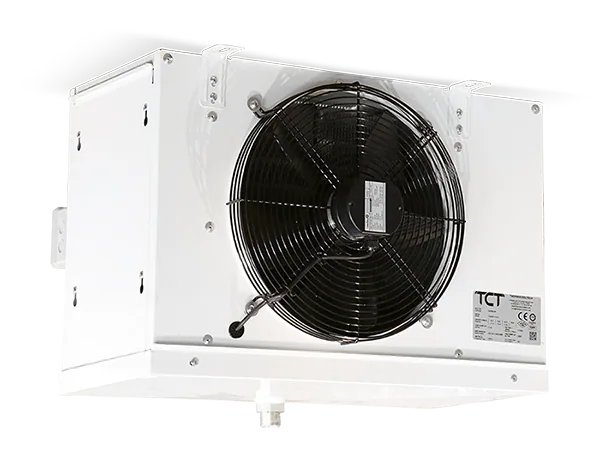

SNKTEA30 114 10
Evaporator · Series TEA · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C—
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C1.45 kW
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C1.11 kW
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C0.89 kW
- Product code
- 1066
- Series
- TEA
- Refrigerant
- R404A
- Fan
- 1 × Ø300 mm · 1,400 rpm
- Airflow
- 1,428 m³/h
- Heat transfer surface
- 4.71 m²
- Fin spacing
- 10 mm
- Pipe connections
- 1/2" - 1/2"
- Dimensions (L × W × H)
- 710 × 463 × 515 mm
