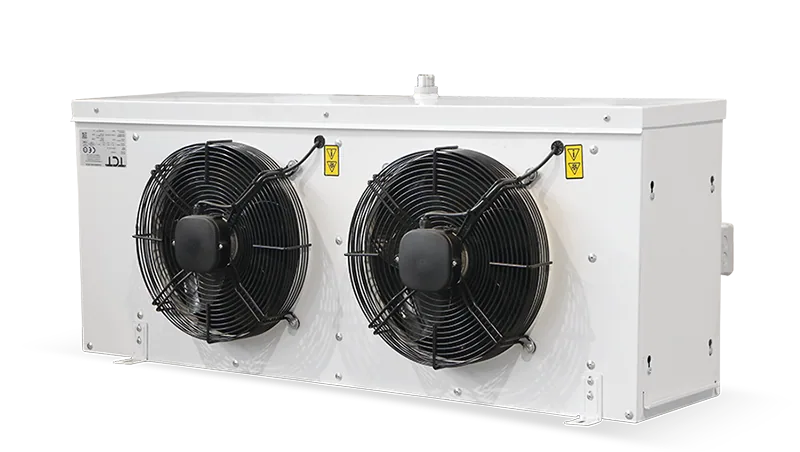

SNKTEA35 124 4 (PLS)
Evaporator · Series TEA · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C7.56 kW
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C5.43 kW
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C—
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C—
- Product code
- 8547
- Series
- TEA
- Refrigerant
- R404A
- Fan
- 2 × Ø350 mm · 1,400 rpm
- Airflow
- 3,571 m³/h
- Heat transfer surface
- 21.35 m²
- Fin spacing
- 4 mm
- Pipe connections
- 1/2" - 3/4"
- Dimensions (L × W × H)
- 1,110 × 464 × 515 mm
