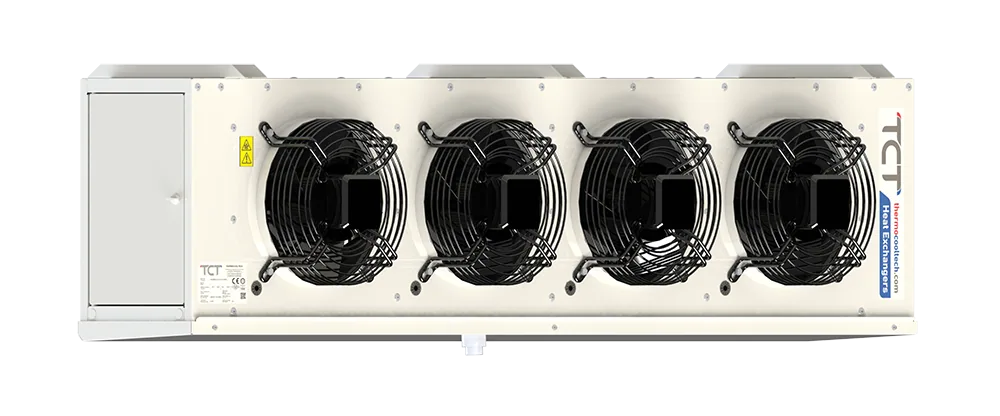

SNKTEA40 146 8 (PLS)
Evaporator · Series TEA · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C—
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C15.9 kW
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C12.3 kW
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C10.1 kW
- Product code
- 8788
- Series
- TEA
- Refrigerant
- R404A
- Fan
- 4 × Ø400 mm · 1,400 rpm
- Airflow
- 11,405 m³/h
- Heat transfer surface
- 51.58 m²
- Fin spacing
- 8 mm
- Pipe connections
- 3/4" - 1 3/8"
- Dimensions (L × W × H)
- 2,350 × 562 × 628 mm
The quote button opens the contact form filled in with this model.
