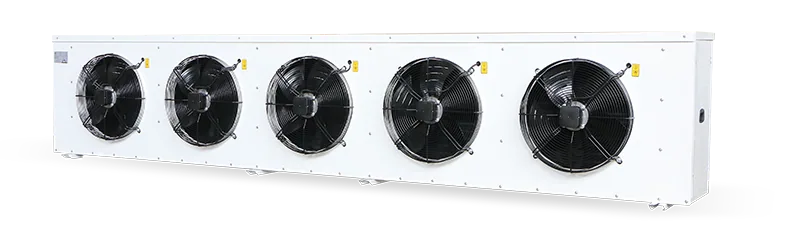

SNKTEA50 154 6 (PLS)
Evaporator · Series TEA · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C46.4 kW
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C33.5 kW
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C26.5 kW
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C—
- Product code
- 8675
- Series
- TEA
- Refrigerant
- R404A
- Fan
- 5 × Ø500 mm · 1,400 rpm
- Airflow
- 33,091 m³/h
- Heat transfer surface
- 95.58 m²
- Fin spacing
- 6 mm
- Pipe connections
- 1 1/8" - 1 5/8"
- Dimensions (L × W × H)
- 3,600 × 546 × 788 mm
