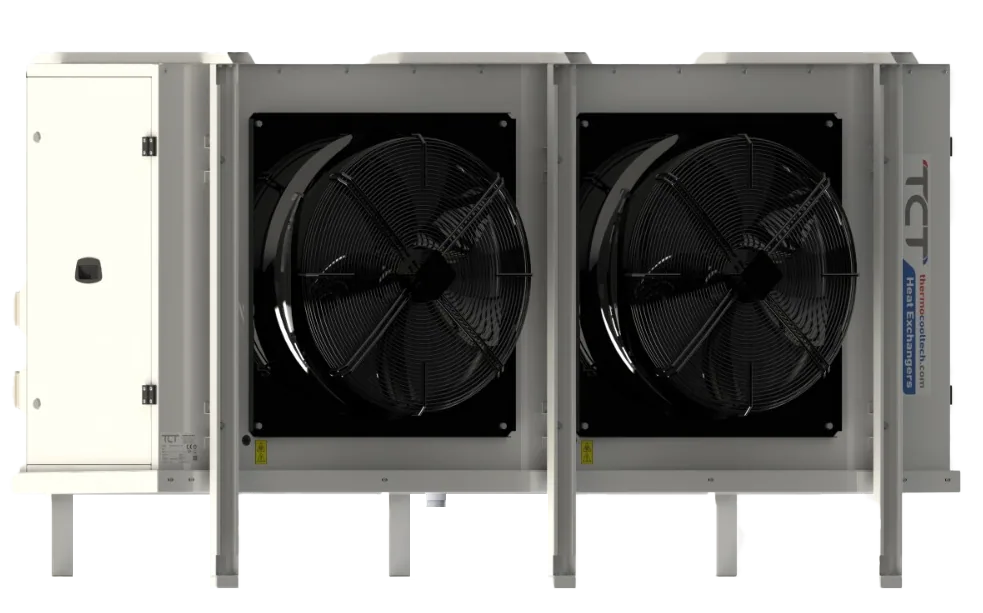

SNKTFF63 126 12 (PLS)
Evaporator · Series TFF · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C—
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C—
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C—
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C—
- Product code
- 9571
- Series
- TFF
- Refrigerant
- R404A
- Fan
- 2 × Ø630 mm · 1,400 rpm
- Airflow
- 33,538 m³/h
- Heat transfer surface
- 100.99 m²
- Fin spacing
- 12 mm
- Pipe connections
- 1 1/8"----2 5/8"
- Dimensions (L × W × H)
- 2,431.4 × 950 × 1,335.3 mm
