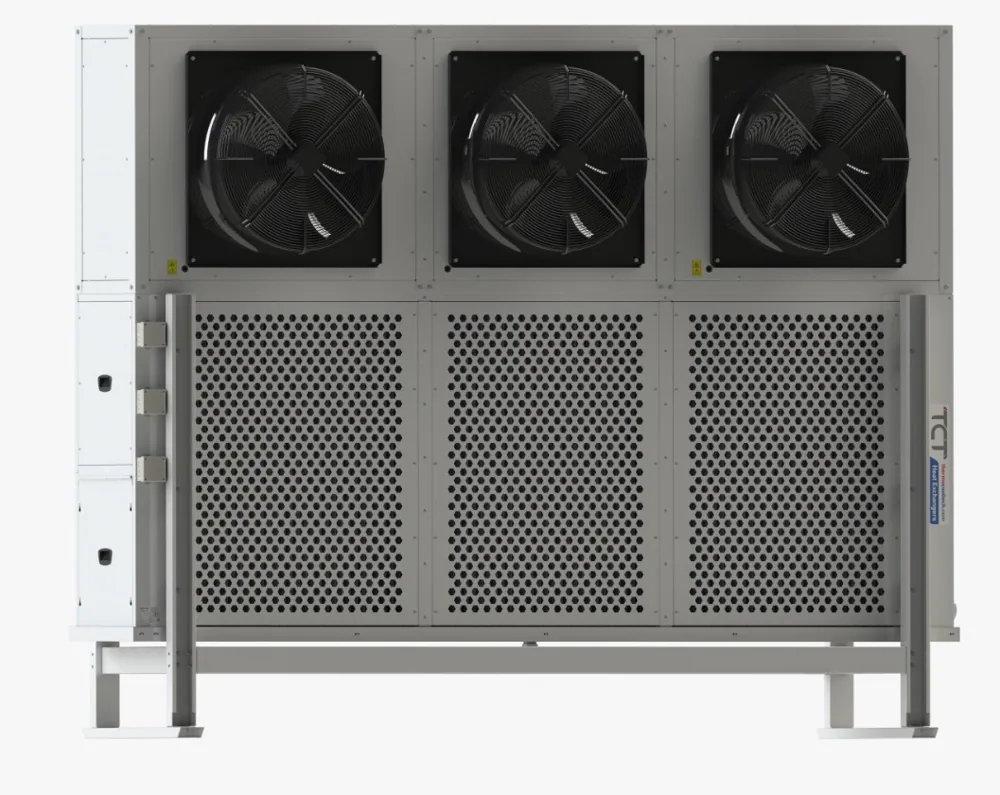

SNKTTFH63 138 10 (PLS)
Evaporator · Series TTFH · R404A
Capacity
SC1 · +10 °CAir conditioning · ΔT 8 K · Te +2 °C—
SC2 · 0 °CCold storage · ΔT 8 K · Te −8 °C—
SC3 · −18 °CLow temperature · ΔT 7 K · Te −25 °C—
SC4 · −25 °CFrozen storage · ΔT 6 K · Te −31 °C—
- Product code
- 9974
- Series
- TTFH
- Refrigerant
- R404A
- Fan
- 3 × Ø630 mm · 1,400 rpm
- Airflow
- 37,145 m³/h
- Heat transfer surface
- 321.12 m²
- Fin spacing
- 10 mm
- Pipe connections
- 1 3/8"/// 3 1/8"
- Dimensions (L × W × H)
- 3,419 × 1,128.5 × 2,641.3 mm
The quote button opens the contact form filled in with this model.
